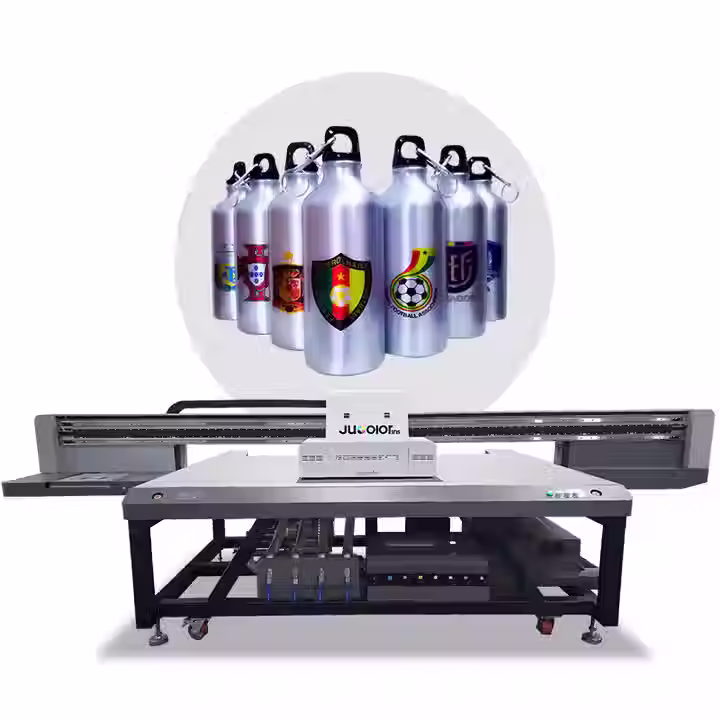

JuColor CJ-UVF2513Pro 8'x4' **Toshiba Printhead
$30,000.00
UV Printer 8x4 – High-Speed Precision for Versatile Printing
Achieve unparalleled results with the UV Printer 8x4, tailored for industrial and creative applications.
- Print Size: 8x4' with 15cm print height
- Print Head: Advanced Toshiba print head technology
- Ink Colors: White + CMYK / CMYK, LC, LM + Varnish
- Drop Volume: 5PL variable drop for smooth, detailed prints
- High Gap Printing: 15mm clearance for thicker materials
- Resolution Options: 900dpi, 1200dpi, 1800dpi for stunning clarity
Applications: Perfect for wood, PVC, glass, metal, MDF, leather, and more.
Key Advantages: Experience high-speed operation, exceptional stability, and unmatched precision for all your printing needs.
PRINTHEAD
Quantity
First file.pdf
Second file.doc
Third file.txt
SPECIFICATIONS
|
Model |
CJ-UV2513 |
Ink type |
Uv led curing ink |
|
Print head |
Toshiba print heads |
Ink color |
CMYK, LC,LM,White, Varnish |
|
Print size |
8*4’ |
Print height |
5.9’’ |
|
Numbers of print heads |
4/6 |
Cartridge Capacity |
1000 ML each color, lack of ink alarm,White Ink Stirring |
|
Printing medias |
Glass, Acrylic, Wood, , Metal sheet, PVC,Plastic,Ceramic,Paper Leather, PP, PE, PTFE… etc |
||
|
Printing speed |
Ink color |
CMYK/LC,LM+W+V |
2*CMYK+2*W+2*V |
|
Draft |
47.7㎡/h |
71.5㎡/h |
|
|
Production |
25.5㎡/h |
38.25㎡/h |
|
|
Quality |
19.1㎡/h |
28.65㎡/h |
|
|
High quality |
12.7㎡/h |
19㎡/h |
|
|
Resolution |
600DPI, 900DPI,1200DPI, 1800DPI |
||
|
Power Supply |
50/60Hz, 220-240V 5KW |
Working temperature |
16℃-30℃（62℉-86℉） |
|
RIP software |
SAI flexi print |
Working humidity |
40%-60% |
|
Printer size |
4175*2165*1420mm,1500KG |
Packing size |
4450*2250*1560mm, 2250KG |
SHIPPING
Availability depends on production time. Equipment ships via truck line. K Engineering provides installation and training. A licensed electrician is required for installation, and a forklift will be needed upon delivery.
WARRANTY
1 year warranty, except for printhead and ink system
